Rated voltage:Uo/U 300/500V
Test voltage:4000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km

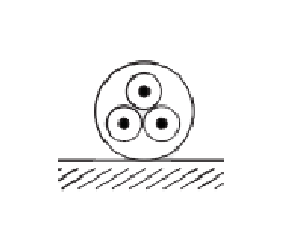

Bending radius:
stationary :15 x cable diameterØ
flexible:-15°C - 70°C
stationary:-40°C - 70°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-3
特点：
● 阻燃
● 低烟无卤
● 低腐蚀性
| Part No. | No.cores Xcross-sec. mm² |
Outer Øca. mm |
Cop.weight kg / km |
Weight ca. kg / km |
|---|---|---|---|---|
| 502001 | 2x0,5 OZ | 5,8 | 32,1 | 46 |
| 502002 | 3G0,5 | 6,1 | 39,2 | 56 |
| 502003 | 3x0,5 OZ | 6,1 | 39,2 | 56 |
| 502004 | 4G0,5 | 6,5 | 46,1 | 62 |
| 502005 | 4x0,5 OZ | 6,5 | 46,1 | 62 |
| 502006 | 5G0,5 | 7,0 | 52,1 | 75 |
| 502007 | 7G0,5 | 7,5 | 75,0 | 98 |
| 502008 | 12G0,5 | 9,9 | 117,0 | 158 |
| 502009 | 18G0,5 | 11,5 | 156,2 | 216 |
| 502010 | 25G0,5 | 13,5 | 205,5 | 315 |
| 502011 | 2x0,75 OZ | 6,2 | 39,3 | 55 |
| 502012 | 3G0,75 | 6,5 | 49,4 | 68 |
| 502013 | 3x0,75 OZ | 6,5 | 49,4 | 68 |
| 502014 | 4G0,75 | 7,0 | 57,2 | 78 |
| 502015 | 4x0,75 OZ | 7,0 | 57,2 | 78 |
| 502016 | 5G0,75 | 7,7 | 70,0 | 95 |
| 502017 | 5x0,75 OZ | 7,7 | 70,0 | 95 |
| 502018 | 7G0,75 | 8,3 | 98,0 | 130 |
| 502019 | 7x0,75 OZ | 8,3 | 98,0 | 130 |
| 502020 | 12G0,75 | 10,9 | 151,2 | 203 |
| 502021 | 18G0,75 | 12,7 | 207,5 | 284 |
| 502022 | 25G0,75 | 14,9 | 275,8 | 380 |
| 502023 | 32G0,75 | 16,4 | 330,0 | 430 |
| 502024 | 2x1,0 OZ | 6,5 | 50,0 | 66 |
| 502025 | 3G1,0 | 6,8 | 60,0 | 80 |
| 502026 | 3x1,0 OZ | 6,8 | 60,0 | 80 |
| 502027 | 4G1,0 | 7,3 | 75,0 | 100 |
| 502028 | 4x1,0 OZ | 7,3 | 75,0 | 100 |
| 502029 | 5G1,0 | 8,1 | 91,0 | 130 |
| 502030 | 7G1,0 | 8,8 | 117,0 | 160 |
| 502031 | 12G1,0 | 11,5 | 187,0 | 250 |
| 502032 | 18G1,0 | 13,9 | 253,5 | 382 |
| 502033 | 25G1,0 | 16,0 | 342,6 | 460 |
| 502034 | 2x1,5 OZ | 7,1 | 65,0 | 87 |
| 502035 | 3G1,5 | 7,5 | 90,0 | 100 |
| 502036 | 3x1,5 OZ | 7,5 | 90,0 | 100 |
| 502037 | 4G1,5 | 8,2 | 105,0 | 125 |
| 502038 | 5G1,5 | 8,9 | 121,0 | 158 |
| 502039 | 7G1,5 | 9,9 | 159,0 | 210 |
| 502040 | 12G1,5 | 13,0 | 255,0 | 329 |
| 502041 | 18G1,5 | 15,6 | 368,0 | 480 |
| 502042 | 25G1,5 | 18,0 | 493,0 | 660 |
| 502043 | 2x2,5 OZ | 8,5 | 98,0 | 132 |
| 502044 | 3G2,5 | 9,0 | 148,5 | 168 |
| 502045 | 4G2,5 | 10,0 | 174,2 | 195 |
| 502046 | 5G2,5 | 11,0 | 200,8 | 222 |
| 502047 | 7G2,5 | 12,0 | 240,0 | 320 |
| 502048 | 12G2,5 | 16,2 | 441.0 | 540 |
| 502049 | 2x4,0 OZ | 10,0 | 163,0 | 233 |
| 502050 | 3G4,0 | 10,7 | 178,0 | 260 |
