Rated voltage:Uo/U 300/500V
Test voltage:2000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km
Bending radius:
stationary :10 x cable diameterØ
flexible:-15°C - 70°C
stationary:-30°C - 70°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
● Stranded conductor made of Cu wire bare
● Strand structure to VDE 0295 class 5 / IEC 60228
class 5
● PVC-insulated cores
● Core identification:
up to 5 cores: colour coding to VDE
02937 cores and over: black with printed
consecutive number coding
● Green-yellow protective conductor

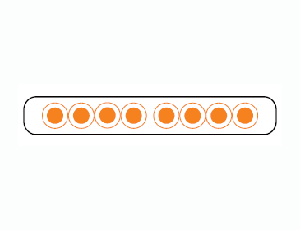

● Flat side-by-side core arrangement
● Outer sheath: PVC, flame retardant
● Sheath colour: black
Suitable for use as trailing cable forcranes,hoisting and lifting gear, conveyorplant and as feed cable for mobile machine components. Installation in dry,damp and wet environments.
| Part No. | No.cores Xcross-sec. mm² |
Outer Øca. mm |
Cop.weight kg / km |
Weight ca. kg / km |
|---|---|---|---|---|
| 801001 | 4G1.5 | 5.2x14.5 | 58.0 | 127 |
| 801002 | 5G1.5 | 5.2x17.5 | 72.0 | 140 |
| 801003 | 7G1.5 | 5.2x25.3 | 101.0 | 225 |
| 801004 | 8G1.5 | 5.2x27.3 | 115.0 | 260 |
| 801005 | 10G1.5 | 5.2x37.3 | 144.0 | 320 |
| 801006 | 12G1.5 | 5.2x40.8 | 173.0 | 396 |
| 801007 | 18G1.5 | 5.2x61.8 | 259.0 | 710 |
| 801008 | 24G1.5 | 5.2x83.0 | 346.0 | 815 |
| 801009 | 4G2.5 | 5.9x17.5 | 96.0 | 185 |
| 801010 | 5G2.5 | 5.9x21.0 | 120.0 | 240 |
| 801011 | 7G2.5 | 5.9x31.0 | 168.0 | 340 |
| 801012 | 8G2.5 | 5.9x33.0 | 192.0 | 375 |
| 801013 | 10G2.5 | 5.9x42.5 | 240.0 | 510 |
| 801014 | 12G2.5 | 5.9x49.0 | 288.0 | 574 |
| 801015 | 24G2.5 | 5.9x102.0 | 576.0 | 1190 |
| 801016 | 4G4.0 | 6.9x20.0 | 154.0 | 315 |
| 801017 | 5G4.0 | 6.9x26.0 | 192.0 | 390 |
| 801018 | 7G4.0 | 6.9x35.5 | 269.0 | 530 |
| 801019 | 4G6.0 | 7.4x22.0 | 230.0 | 430 |
| 801020 | 5G6.0 | 7.4x31.0 | 288.0 | 525 |
| 801021 | 7G6.0 | 7.4x43.0 | 403.0 | 755 |
| 801022 | 4G10 | 9.3x27.6 | 384.0 | 682 |
| 801023 | 5G10 | 11.0x37.5 | 480.0 | 1110 |
| 801024 | 4G16 | 11.2x34.5 | 614.0 | 1015 |
| 801025 | 5G16 | 11.2x43.5 | 768.0 | 1200 |
| 801026 | 4G25 | 13.0x41.5 | 960.0 | 1370 |
| 801027 | 4G35 | 14.5x49.5 | 1344.0 | 1920 |
| 801028 | 4G50 | 17.5x58.5 | 1920.0 | 2700 |
| 801029 | 4G70 | 20.0x63.0 | 2688.0 | 3710 |
| 801030 | 4G95 | 20.5x71.3 | 3648.0 | 4550 |
