Rated voltage:Uo/U 300/500V
Test voltage:4000V
Insulation resistance at +20° C:≥:(+20°C):≧20MΩx km

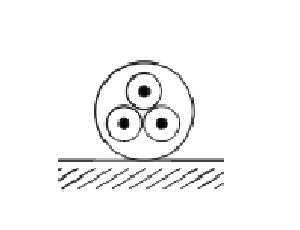

Bending radius:
stationary :4 x cable diameterØ
flexible:15 x cable diameterØ
Temperature range:
flexible:-5°C - 70°C
stationary:-40°C - 80°C
Radiation resistance:≤80×10cJ/kg
Flame retardant:IEC 60332-1
电压峰值：≤100V
试验电压：
线芯/线芯 1000V
线芯/屏蔽 800V
导体电阻：≤ 23 Ohm / km
电容：≤ 80 nF/km
阻抗 31.25 kHz：
100+/-20 Ohm;
nominal value 100 Ohm
衰减 39 kHz：≤ 3 dB/km
阻燃标准：IEC 60332-1
Oil resistant to VDE 0472 part 803

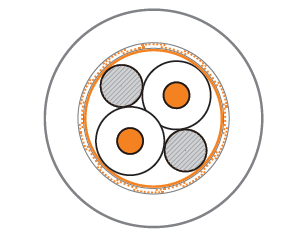

| Part No. | No.cores Xcross-sec. mm² |
Outer Øca. mm |
Cop.weight kg / km |
Weight ca. kg / km |
|---|---|---|---|---|
| 251001 | 1x2x1,0 | 7,5 | 41,3 | 75 |
